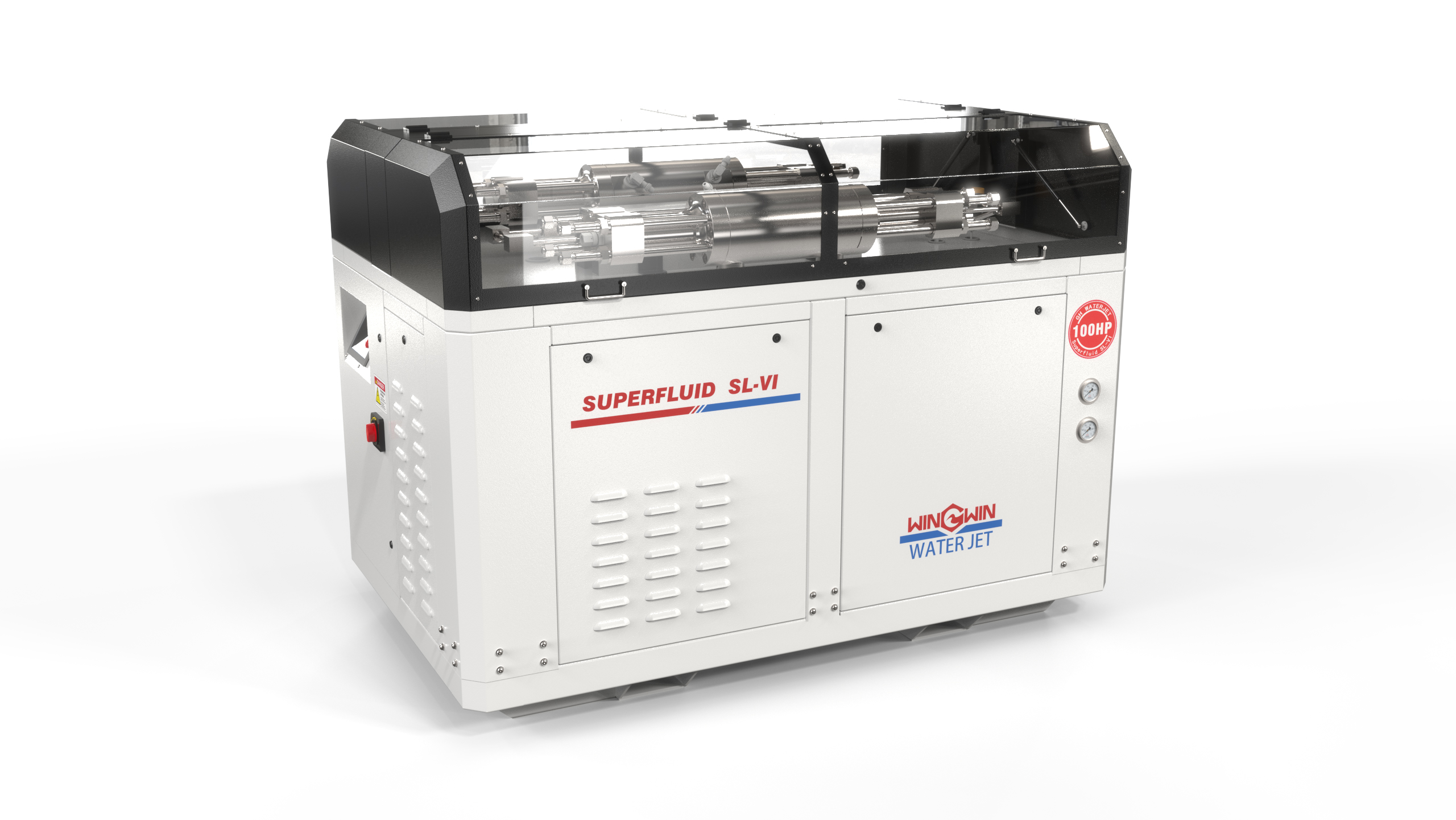

SL-VI 100HP Waterjet Intensifier Pump

Revolutionary Design

SL-VI 100HP features dual intensifier units with intelligent alternation technology, achieving pressure fluctuation within ±1.5% through precise hydraulic balancing system, laying the foundation for micron-level precision cutting. The unique modular structure design reduces core component replacement time to 30 minutes, significantly improving equipment utilization.

Outstanding Performance

Core Technical Specifications

• Peak Performance: 60,000 PSI @ 7.6 L/min

• Power System: 75kW servo motor, 35% energy reduction

• Pressure Adjustment: 30%-100% intelligent stepless regulation

• Operation Efficiency: 75 SPM reversing rate, 40% reduced impact

Intelligent Control System

Real-time Monitoring Assurance

• Multi-parameter sensing: Oil temperature, quality, level, and inlet water pressure

• Early warning: Predicts maintenance needs 200 hours in advance

• Self-adaptation: Automatically optimizes pressure based on material properties

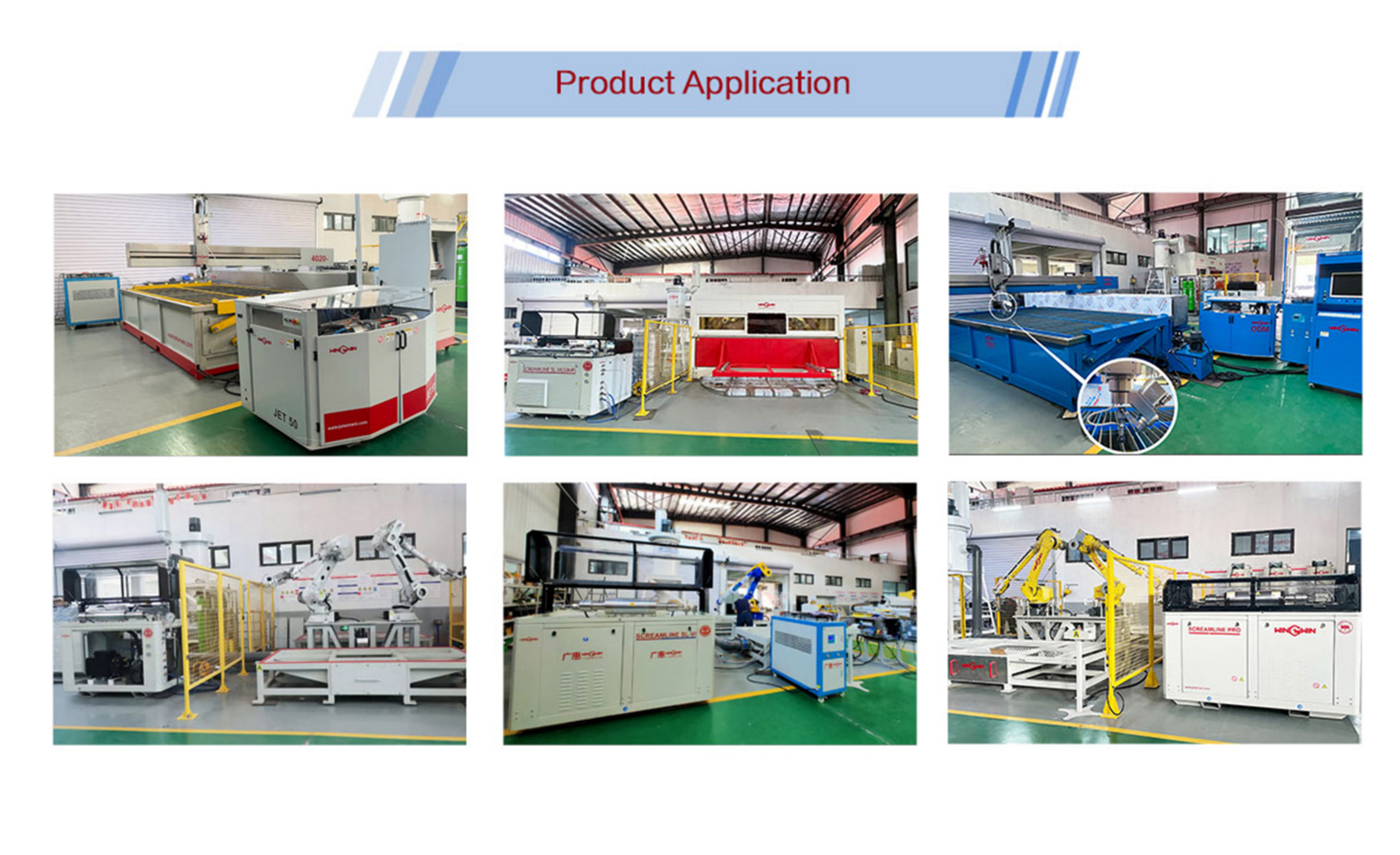

Deeply Optimized Applications

Aerospace

• Carbon fiber composite cutting up to 300mm, taper angle <0.5°

• Titanium alloy cutting speed increased by 60%, HAZ controlled within 0.1mm

New Energy Manufacturing

• Precision battery separator cutting, burr-free edges, yield rate up to 99.8%

• Photovoltaic ceramic substrate processing, chipping size under 50μm

Defense & Military

• Complex-shaped ballistic ceramic processing, crack-free, 98% strength retention

• Armor steel cutting efficiency 3x higher, tooling cost reduced by 70%

Reliability Engineering

Long-life Sealing System

• Metal hard seals: Tungsten-cobalt alloy core components, 2000-hour lifespan

• Hydraulic preload: Automatic tie-rod tension compensation ensures high-pressure stability

Intelligent Maintenance System

• Self-diagnosis: 63 fault codes for real-time monitoring and precise troubleshooting

• Preventive maintenance: Intelligent component life prediction based on operation data

Optional Configurations

Professional Grade

• Intelligent air inlet control system

• Full transparent protective covers (front & rear)

• Pressure adjustment data recording module

• Stainless steel system components

Value Return Analysis

Operational Cost Optimization

• Energy consumption: 35% savings compared to traditional hydraulic systems

• Maintenance: Early warning system reduces unexpected downtime by 85%

• Consumables: Seal life 3x longer, annual savings of $15,000

Technical Support

We provide a complete application process database containing cutting parameters for 127 materials, ensuring plug-and-play operation. Professional remote diagnostic system responds to technical issues within 2 hours, offering 24/7 support.
