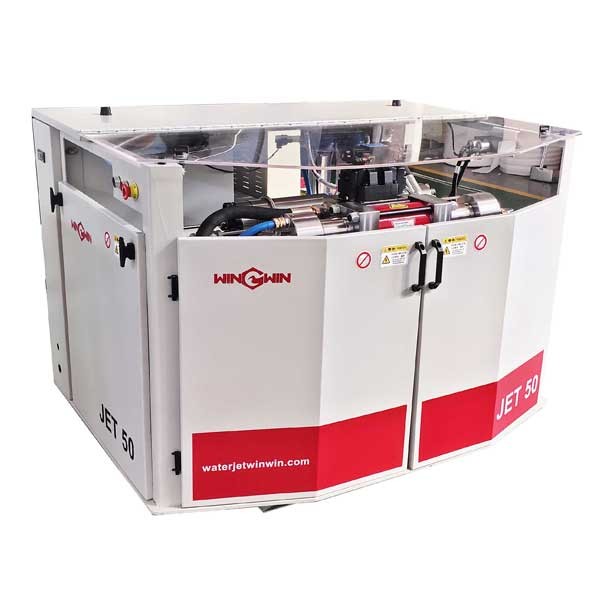

WWJET50 Waterjet Intensifier Pump

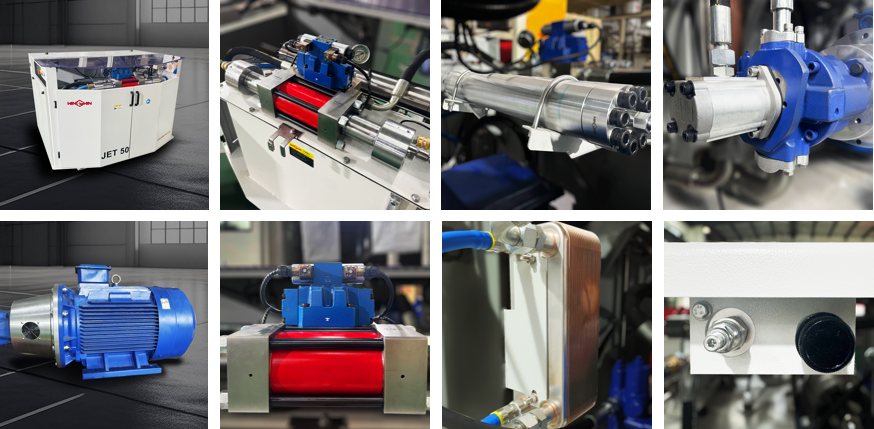

”7” core technologies - WWJET50 WATERJET INTENSIFIER PUMP

1. Standard WW50JET waterjet pump, an internationally recognized booster core, interchangeable with

   internationally standard parts, ensuring equipment versatility.

2. Independent cooling circulation system: Cooling occurs simultaneously with the motor, ensuring

the oil temperature remains within the specified range.

3. High-performance, thermally conductive copper plate cooler maximizes the contact area between cold

water and hot oil, effectively reducing oil temperature and ensuring stable equipment operation.

4. Equipped with an automatic constant-pressure variable pump with a flow rate of 119 L/min, it ensures

sufficient and stable pressure for rapid cutting.

5. High- and low-pressure regulating valves eliminate pressure fluctuations and ensure stable pressure.

6. A large-capacity 1.4L accumulator, manufactured with a one-piece forging process and maintenance-free

 design, ensures stable pressure.

7. High-performance hydraulic reversing valve: responsive and quiet, ensuring smoother equipment operation.

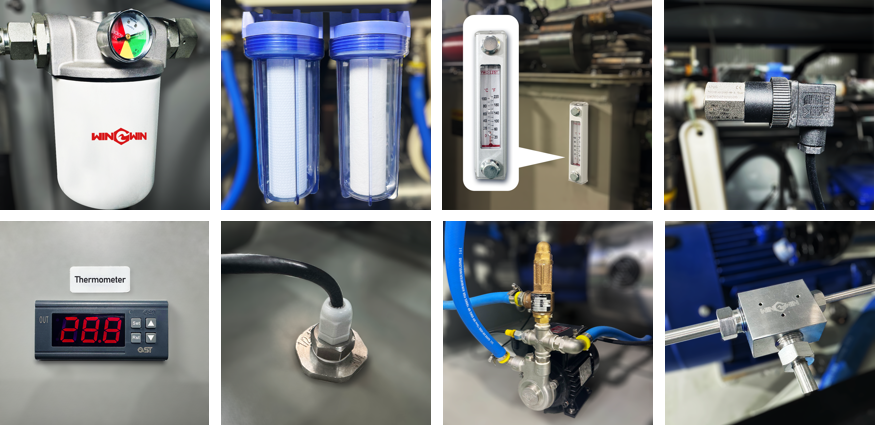

“7” safety protection projects -WWJET50 WATERJET INTENSIFIER PUMP

1. Oil quality alarm system: When oil quality fails to meet standards, the oil filter will indicate a blockage.

2. Oil level detection system: When hydraulic oil is too low, the machine will automatically shut down and issue an alarm.

3. Oil temperature detection system: When the oil temperature rises above a set value, the machine will automatically

 shut down and issue an alarm.

4. Low-pressure water detection system: When the water inlet pressure is insufficient, the machine will automatically

shut down and issue an alarm.

5. Water filtration system: Equipped with a two-stage water filtration system to ensure water quality.

6. Equipped with a two-stage booster system and a two-stage stainless steel booster pump to ensure sufficient water

pressure entering the booster.

7. Utilizing monitorable mechanical components: When high-pressure components wear out before failure, water will

 overflow from the inspection port, allowing for easy monitoring of component condition.

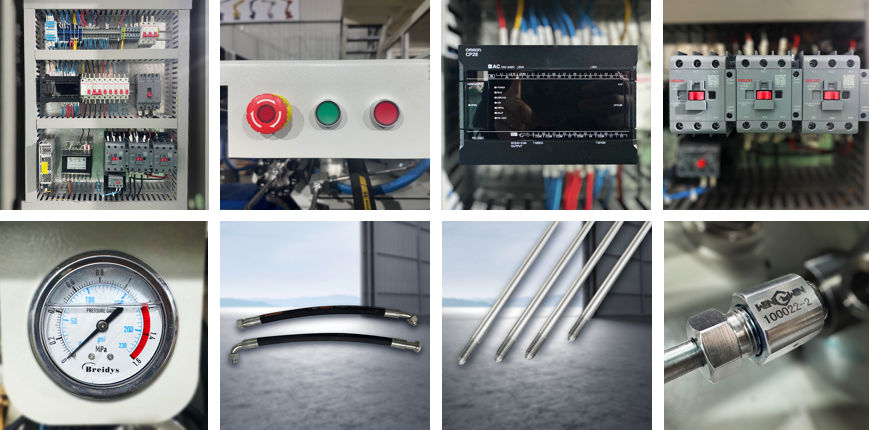

”7” core deployments -WWJET50 WATERJET INTENSIFIER PUMP

1. Star-delta starting procedure reduces starting shock, protects motors and circuitry, and saves electricity costs.

2. Omron PLC includes a built-in booster pump start-up procedure.

3. Convenient push-button switches and a conveniently located emergency stop button ensure stability and

reliability.

4. Equipped with a water inlet pressure gauge and oil pressure gauge for constant monitoring of equipment

 operation.

5. National standard oil pipes, including four-layer steel wire high-pressure pipes, withstand a maximum

pressure of 38 MPa.

6. Ultra-high-pressure pipelines offer exceptional tensile strength and riot resistance.

7. Standard high-pressure accessories, each with a corresponding number, are interchangeable with internationally

compatible parts.

Get a quote for WWJET50 PUMP, CONTACT WATERJET SPARE
