4020 5 Axis waterjet cutting machine with IGEMS CAD CAM software

Details

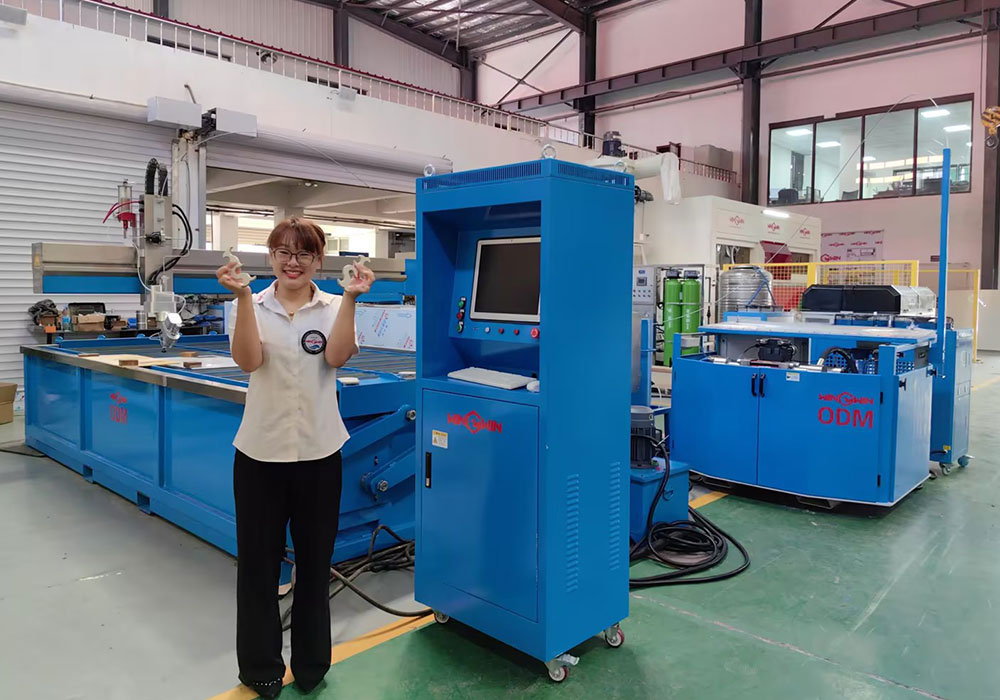

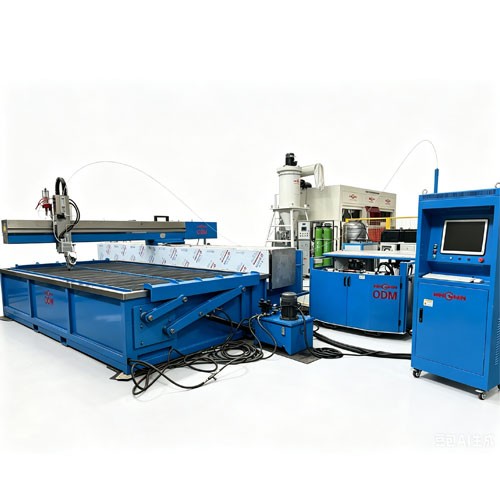

4020 5 Axis waterjet cutting machine with IGEMS CAD CAM software


This waterjet cutting machine is custom-designed for the deep processing of marble, granite, slabs, quartz, and other stone materials. Paired with IGEMS professional stone cutting programming software, it integrates a fully automatic feeding mechanism and a hydraulic tilting worktable, enabling one-stop processing of all processes for marble slabs, including cutting, drilling, irregular cutting, 45° chamfering, curved beveling, and countertop mosaic. It is widely used in stone processing plants for kitchen and bathroom countertops, feature walls, stone mosaics, stair treads, and tombstone carvings. It solves the industry pain points of traditional stone processing, such as laborious manual loading and unloading, cumbersome flipping processing, poor cutting accuracy, and high chipping and breakage rates, achieving automated and continuous production of marble slabs.




1. Cutting Table4020 5A waterjet machine
2. CAD/CAM SoftwareIGEMS
3. Intensifier PumpJET50
4. Cooling SystemIndustrial Grand
5. Water SoftenerFive-stage filtration system
6. Abrasive Feeder200L



Cutting RangeX-Axis : 4000mm ，Y-Axis : 2000mm Z-Axis : 200mm
Control Accurcy±0.01mm
Re-position accuracy0.025
Max cutting speed10m/min
Oprating softwareWEIHONG CNC System
Max swing angleVertical cutting
Swing angle accuracy±0.01°




Max Operating Pressure420Mpa（60000psi）
Operating Pressure330Mpa（7200-55000psi）
Power37KW（50hp）
Max Water Flow3.8L/min
Max Nozzle Diameter0.33mm
Pressure Ratio0.055555556
Max Reversal Rate95 times/min
Max Oil Pressure31Mpa
Max Oil Flow119L/min
Oil Tank Volume130L
Weight1.2t
Dimension1600mm*1300mm*1100mm


JET50 Intensifier Pump ————— Features


A. Beautiful Appearance and Reasonable Design

The appearance is more exquisite and beautiful, small and exquisite, the main parts of the intensifier and accumula- tor are aggregation and installed above the center of the pump, with a transparent acrylic cover, which is convenient for observing the working status at any time.

B. High Performance and Standard Design

Universal Structure Design, International Standard Spare Parts. High versatility of accessories, customers can pur- chase the corresponding parts in any waterjet machine market.

C. Newly designed accumulator

Newly designed accumulator, integral forging, no rubber seals, maintenance-free.

D. Double Oil-Filtration System

Double filtration devices are set at the oil inlet and oil return port to ensure the oil path is clean, smooth and not blocked, and prolong the service life of the Intensifier Pump.



Why did the client choose IGEMS CAD/CAM software?

The customer purchased a waterjet cutting machine for cutting high-end marble materials and wanted to make full use of every part, which was one of the reasons they chose IGEMS CAD software.

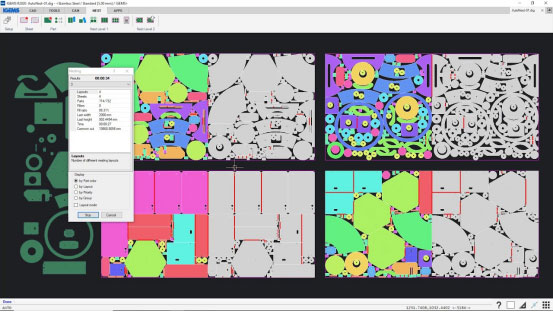

IGEMS is a globally developed integrated CAD/CAM programming software specifically designed for ultra-high pressure waterjet cutting. It is compatible with all types of waterjet cutting equipment, including 2-axis planar cutting, 5/6-axis beveling, rotary pipe cutting, and stone mosaic cutting. With its dedicated functions highly tailored to waterjet cutting processes, it has become a mainstream programming tool in the sheet metal, stone, and aerospace composite material processing industries. Its core advantages are as follows:


Top-tier automated nesting significantly reduces material waste and saves production costs.


Nesting is IGEMS' signature core function. Compared to general CAM software, its algorithm is specifically optimized for irregular parts and irregularly shaped slabs, directly reducing raw material procurement costs.


Fully Automatic Intelligent Nesting: Supports batch nesting of single slabs and multiple slabs, automatically filling tiny gaps in excess material, increasing the utilization rate of complex irregularly shaped parts by 10%~15%. It allows setting part priorities, minimum spacing, and excess material retention; excess slabs can be reused for nesting, reducing waste.


Multi-Cutting Head Synchronous Management: Adapts to dual-head and multi-head waterjet equipment. The software independently allocates processing paths for each cutting head, automatically avoiding interference. Multi-head collaborative processing eliminates waiting time, directly more than doubling equipment capacity.


Irregularly Shaped Slabs/Excess Material Reuse: Supports importing irregularly shaped excess slab outlines for nesting. A dedicated tile mosaic module for the stone industry automatically nests and splices joints for countertops and mosaics, significantly reducing waste rates in stone processing.


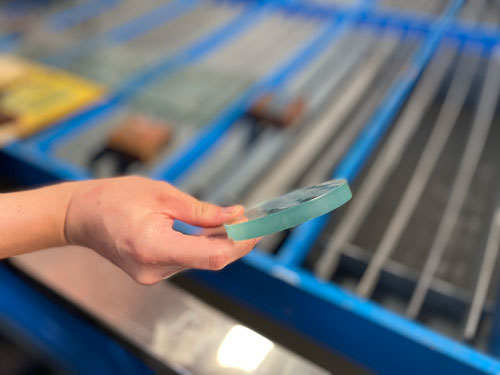

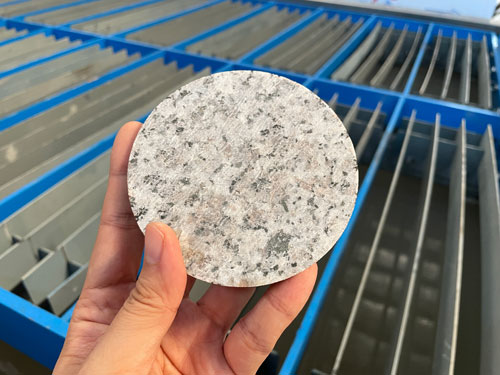

This marble-specific waterjet cutting equipment, equipped with automatic feeding and a tilting platform, is a core processing tool for stone processing plants to mass-produce customized stone, improve automation levels, reduce production costs, and expand their high-end irregular marble processing business.
