How to Avoid Precision Errors Caused by Long Travel in 10-Meter Table Waterjet Cutting of Metal Plates

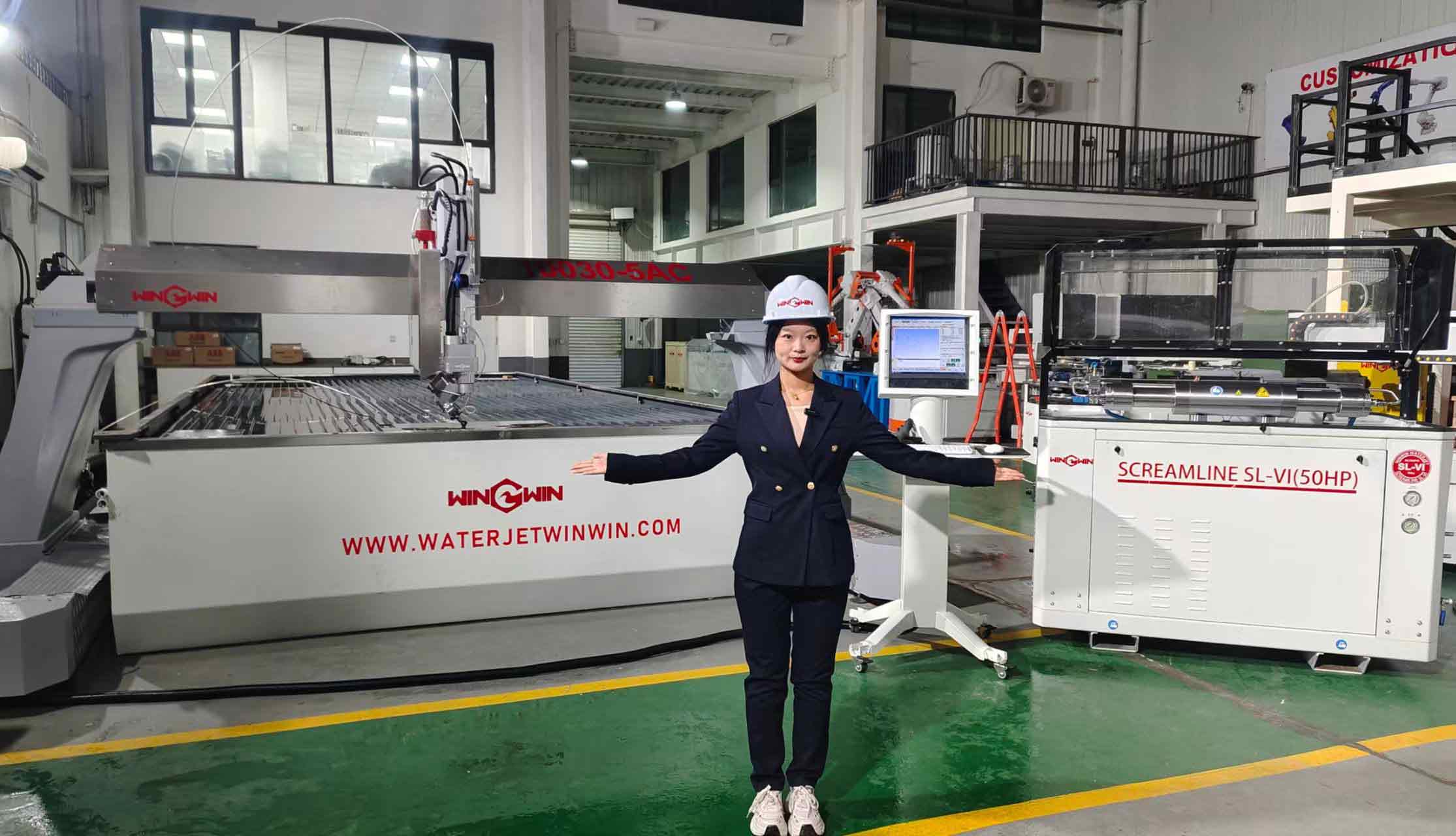

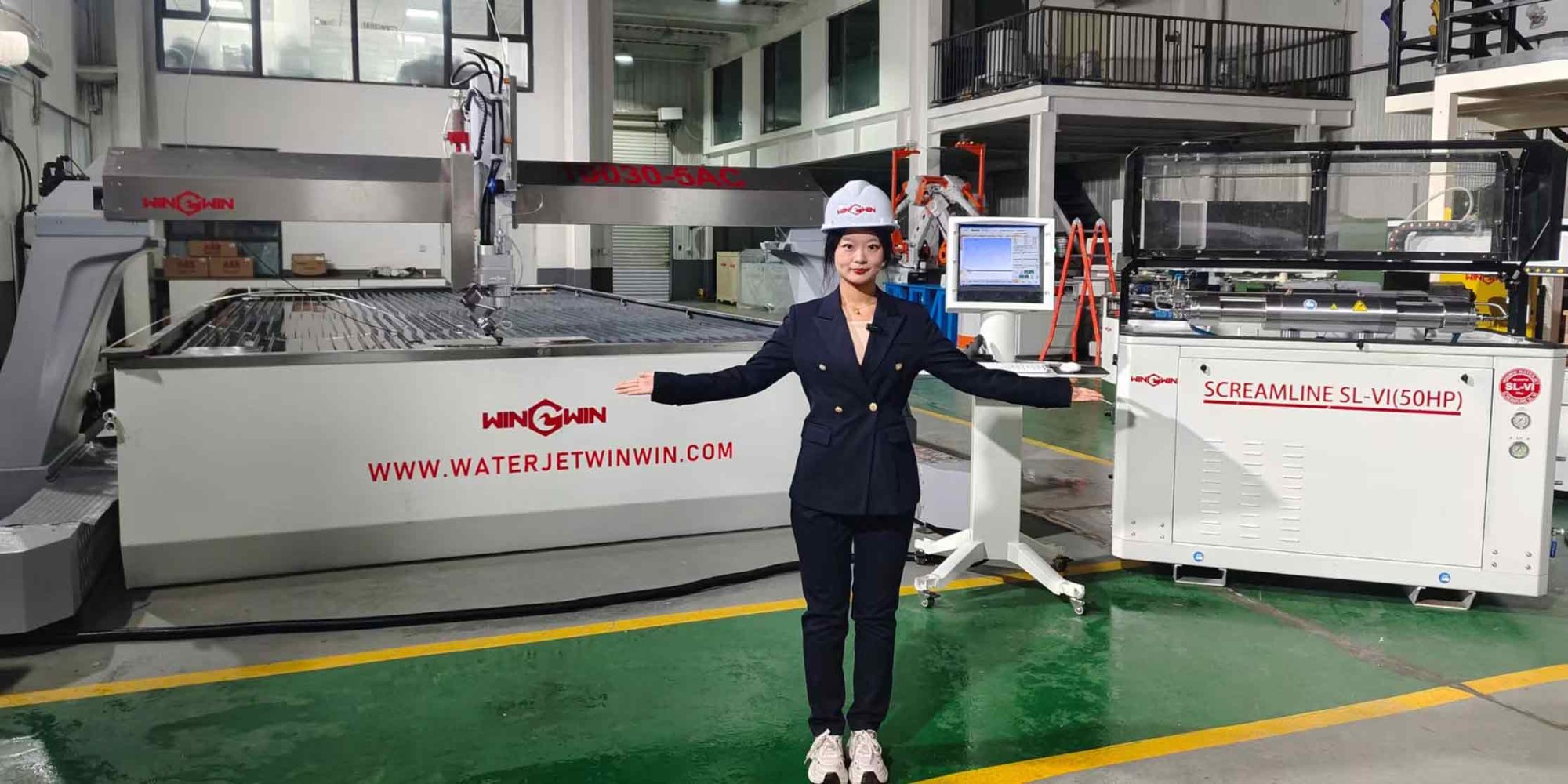

In the field of heavy-duty metal sheet processing, high-precision cutting with one-shot forming and no thermal deformation has always been the industry's goal. The WINWIN 10030-5AC 5-axis waterjet shown in the picture is a professional equipment tailored for 10-meter-level ultra-long table metal cutting. With its ultra-large travel, 5-axis linkage, and cold cutting advantages, it has become the core processing equipment in industries such as shipbuilding, engineering machinery, and pressure vessels.

1. Core Equipment: The Hardcore Strength of the 10-Meter Ultra-Long Table

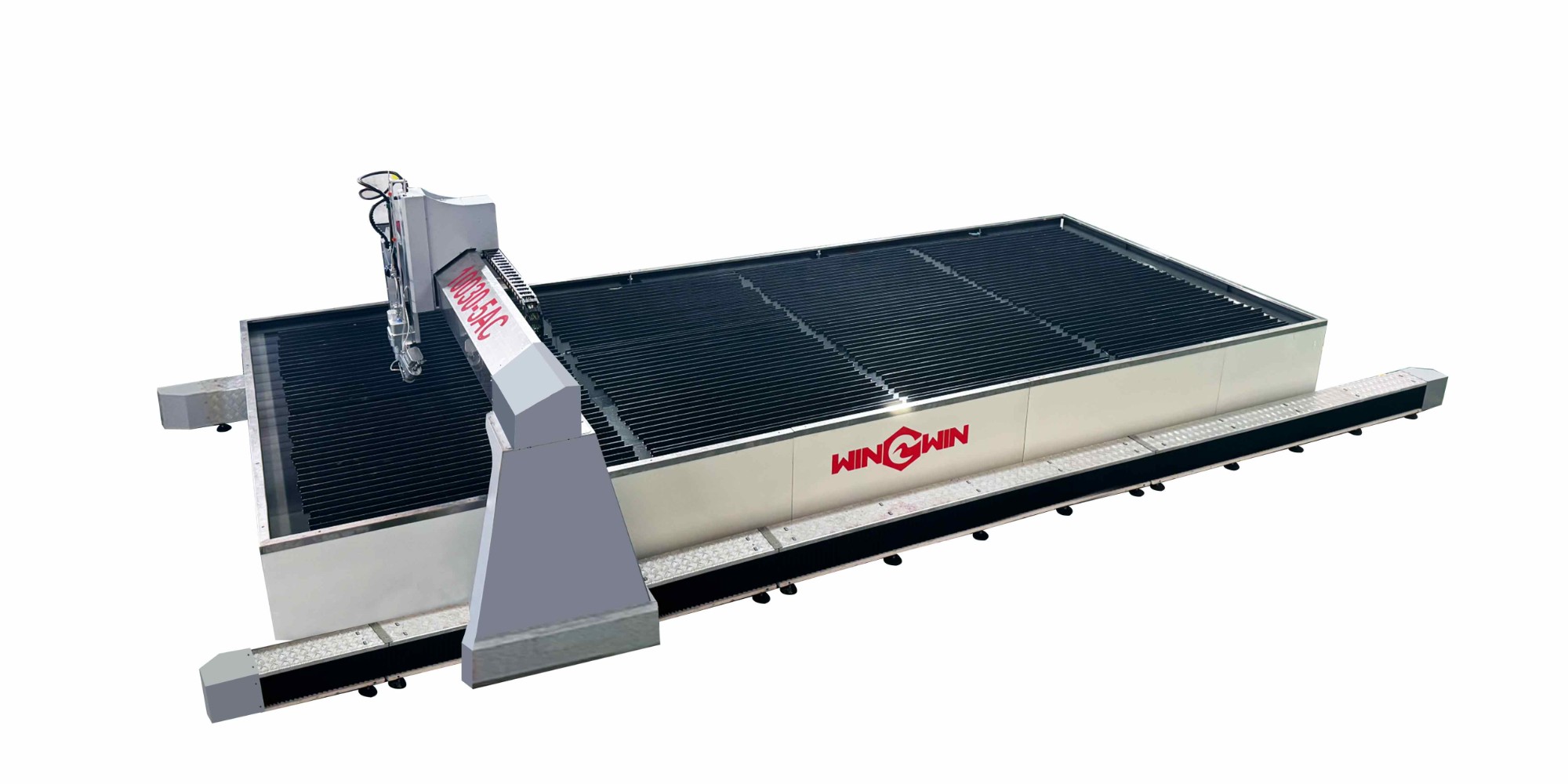

*The core highlight of the WINWIN 10030-5AC lies in its 10-meter-level ultra-long cutting table, which enables one-time complete cutting of a single 10m × 3m metal sheet without segmented splicing, completely eliminating the precision loss and efficiency bottlenecks caused by multiple clamping of large-sized workpieces.

*Whole Machine Structure: Adopts a high-rigidity integrally welded bed, which undergoes multiple aging treatments to eliminate internal stress, ensuring the stability of the bed under 10-meter long travel and preventing mid-section settlement or deformation.

*5-Axis Linkage System: Equipped with a high-precision 5-axis cutting head, it can achieve ±90° swing and 360° rotation. It not only completes plane cutting but also easily handles 3D processing requirements such as bevels, chamfers, and complex contours, making it especially suitable for the precision forming of metal structural parts.

*High-Pressure Power Unit: Paired with the SCREAMLINE SL-VI (50HP) high-pressure intensifier, it can reach a maximum pressure of 420MPa, stably outputting ultra-high-pressure water jets. Combined with garnet abrasives, it can easily cut various metal plates with thicknesses ranging from 1mm to 100mm, including stainless steel, carbon steel, aluminum alloy, titanium alloy, etc.

2. Metal Sheet Cutting: The Natural Advantages of Cold Cutting

Unlike thermal processing methods such as flame cutting and plasma cutting, waterjet cutting is a cold cutting process with irreplaceable advantages in metal sheet processing:

No Thermal Deformation, No Heat-Affected Zone: No high temperature is generated during the cutting process, so it will not cause thermal deformation, metallographic structure changes, or edge hardening of metal sheets, making it particularly suitable for high-end metal component processing that requires strict precision and material performance.

Narrow Kerf, High Material Utilization: The water jet kerf is only 0.8-1.5mm, enabling tight nesting, greatly improving the utilization rate of metal sheets and reducing raw material costs.

Smooth Edge, No Secondary Processing Required: The edge of the cut metal sheet is flat and burr-free, requiring no additional grinding or milling, and can directly enter the next assembly process, effectively shortening the production cycle.

Environmentally Friendly and Pollution-Free: No smoke, exhaust gas, or toxic gases are emitted during the cutting process, and abrasives can be recycled and reused, meeting the environmental requirements of green manufacturing.

3. Application Scenarios: Covering Large-Size Metal Processing in All Industries

With its 10-meter ultra-long table and 5-axis processing capabilities, the WINWIN 10030-5AC demonstrates strong adaptability in multiple industry scenarios:

Shipbuilding: One-time cutting of 10-meter-level marine steel plates and aluminum alloy decks, ensuring the dimensional consistency and splicing accuracy of hull components.

Engineering Machinery: Processing large structural parts of excavators and cranes, such as booms, frames, and track plates, to realize one-shot forming of complex contours and grooves.

Pressure Vessels and Energy Equipment: Cutting corrosion-resistant metal plates such as stainless steel and titanium alloy for manufacturing storage tanks, heat exchangers, pipe flanges, etc., ensuring the high-precision requirements of sealing surfaces and grooves.

Steel Structure Construction: Processing ultra-large steel structural beams, columns, and supports to meet the needs of modern buildings for large-span and high-precision components.

4. Why Choose the WINWIN 10030-5AC?

For enterprises that need to process 10-meter-level metal plates, the value of this equipment lies not only in "being able to cut" but also in "efficiency, stability, and reliability":

Efficiency Improvement: One-time clamping completes full-size cutting, eliminating the time for segmented processing and repositioning, and increasing production efficiency by more than 30%.

Quality Assurance: Cold cutting avoids thermal deformation, and 5-axis linkage ensures the precision of complex contours, significantly improving product qualification rates.

Flexible Adaptation: It can quickly switch between metal plates of different materials and thicknesses, compatible with various processing requirements such as planes, bevels, and 3D contours.

Long-Term Stability: The mature high-pressure system and transmission design, combined with comprehensive after-sales service, ensure 24-hour continuous and stable operation of the equipment.

The WINWIN 10030-5AC 5-axis waterjet, with its 10-meter-level ultra-long table as the core, redefines the cutting standard for large-size metal plates. It is not only a processing equipment but also a key piece of equipment for enterprises to break through the bottleneck of large-size processing and enhance product competitiveness, providing an efficient, precise, and environmentally friendly complete solution for large-size metal component processing in the high-end manufacturing field.
