Resato waterjet spare parts Initiator 1004150
Interested in, contact us.
Other Resato intensifier parts:

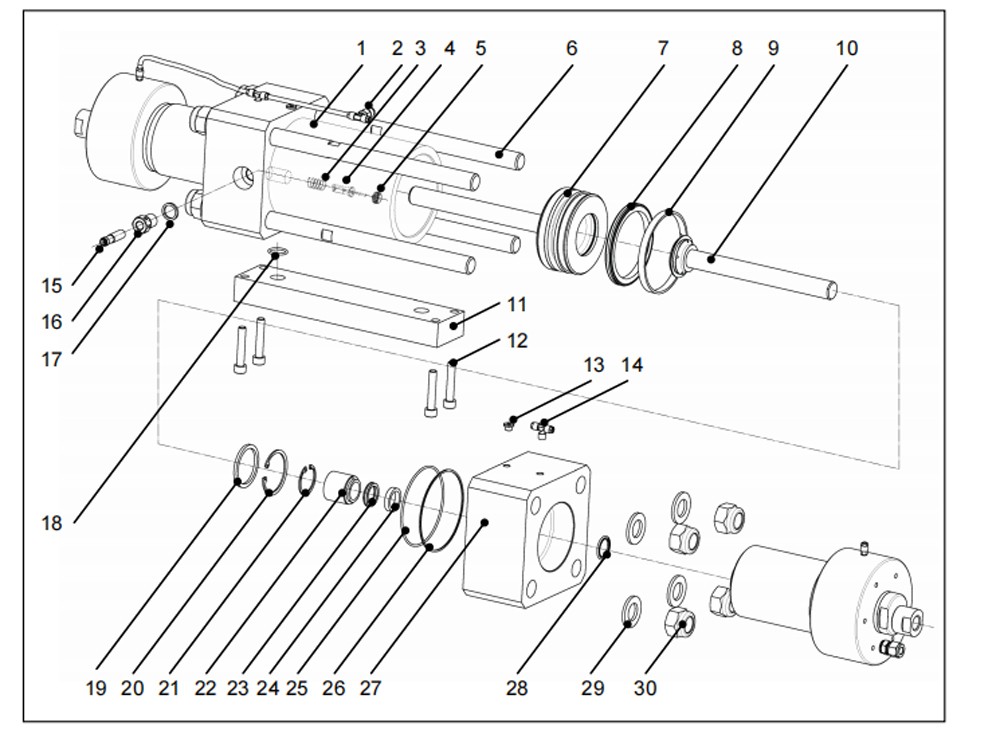

| NO. | QTY | Product name | IOP115-20-2 | A | B | C | D | E |
| 1 | 2 | Support ring | 1003697 | X | ||||
| 2 | 4 | Hoop | 1004319 | X | X | |||
| 3 | 4 | High-pressure seal | 1010531 | X | X | |||
| 4 | 4 | O-ring | ||||||
| 5 | 2 | Bushing | 1004326 | |||||
| 6 | 2 | High-pressure cylinder | 1003544 | |||||
| 7 | 2 | Screw | 1003435 | X | ||||
| 8 | 2 | Disk | 1001824 | X | ||||
| 9 | 4 | Ider | 1005501 | X | ||||
| 10 | 2 | Ball | 1001753 | X | ||||
| 11 | 2 | Valve body | 1004154 | X | ||||
| 12 | 2 | Seat | 1003436 | X | X | |||
| 13 | 2 | Ball | 1003434 | X | X | |||
| 14 | 2 | Guidance crown | 1003437 | X | X | |||
| 15 | 2 | Gland | 1003433 | X | ||||
| 16 | 2 | Leakrate nipple HP flange | 1005326 | |||||
| 17 | 2 | HP flange | 1004316 | |||||
| 18 | 2 | Sealing ring | 1015590 | |||||
| 19 | 2 | Screw | 1001919 | |||||
| 20 | 2 | Connector | 103370 | |||||
| 21 | 4 | O-ring | 1000799 | X | ||||
| No. | Description | IOP115-20-2 | ||||||
| A | Dynamic seal assembly | 1004439 | ||||||
| B | Static seal assembly | 1004540 | ||||||
| C | Inlet check valve assembly | 1004604 | ||||||
| D | Outlet check valve assembly | 1003269 | ||||||
| E | Outlet check valve repair kit | 1004541 | ||||||
If you are interested in any waterjet products or need any waterjet technical support, click here.
