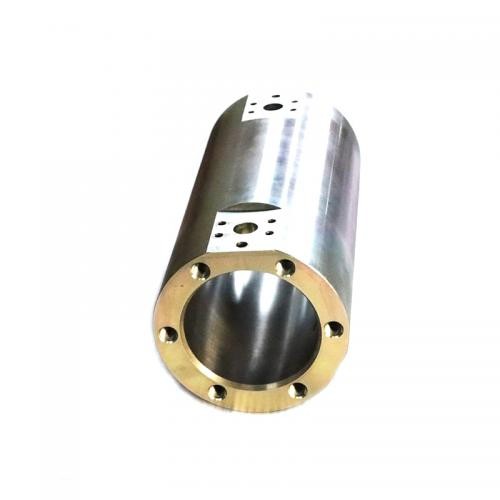

05144514 Hydraulic Cylinder 6000 bar For kmt waterjet machine kmt uhp 90k waterjet parts
Are you looking for 05144514 Hydraulic Cylinder 6000 bar For kmt waterjet machine kmt uhp 90k waterjet parts?
WINWIN is a factory of 100,000psi waterjet cutting machine and pump,these are 90,000-100,000psi waterjet parts we can supply.
Parts Number | Parts Name |
72178493 | Flange Assembly |
20474325 | Stud |
72175997 | Hydraulic Cylinder Head |
72162253 | Ceramic Plunger |
05144514 | Hydraulic Cylinder |
05130224 | Proximity Switch |
72101190 | Hydraulic Piston Assembly |
72166738 | UHP Cylinder |
72170157 | Sealing Head Assembly |
20468634 | Actuator Assembly,N.O. |
20455812 | UHP Tee Assembly |
05034798 | Retaining Ring |
20464590 | Flat Washer,1.13 |
72158494 | UHP Seal Assembly |
05130091 | Hydraulic Seal Cartridge |
05097886 | Socket Head Screw |
72163802 | Liner |
72176756 | O ring |
20455812 | UHP Tee Assembly |
20476377 | Support Topworks |
UHP waterjet parts | Collar 0.38 |
HP Tube 0.38 | |
Gland 0.38 | |
Intensifier Assembly | |
Accumulator | |
20492123 | Retaining Ring |
20492131 | Dowel Pin |
10085371 | Ball |
72165539 | Sealing Hed Body |
72101570 | Seat |
05116561 | Discharge poppet Valve |
05147863 | Compression Spring |
05116751 | Poppet Pin |
20481660 | Gland |
20475878 | Valve Stem |
20475882 | Backup Ring |
20475874 | Backup Ring,Brass |
72112069 | Seal Assembly |
20468617 | Valve Body |
10178697 | Valve Seat |
20451557 | UHP Adapter |
20452962 20452959 | .25 Gland and Collar |
20468634 | Actuator Assembly |
20470417 | Seal installation tool |
20470413 | Seal push tool |
49833114 | Seal positioning tool |
05067350 | Seal positioning tool |
| Item | Part Number | Description | Item | Part Number | Description |
| 1 | 5146592 | Gasket, Topworks Support | 14 | 72162253 | Plunger |
| 2 | 20476377 | Support, Topworks | 15 | 5130091 | Hydraulic Seal Cartridge |
| 3 | 10118206 | O-Ring, 1.31×1.56× .13 | 16 | 72175989 | Bushing Retainer Flange |
| 4 | 5144514 | Hydraulic Cylinder | 17 | 72158494 | UHP Seal Assembly |
| 5 | 5098991 | Socket Head Screw, 3/8-16×3-3/4 | 18 | 72166738 | UHP Cylinder |
| 6 | 95688743 | Lock Washer, .38 | 19 | 72163802 | Liner |
| 7 | 72101190 | Piston Assembly | 20 | 20474325 | Stud, 1-1/8-12×18.31 |
| 8 | 10074771 | O-Ring, 5.25×5.50× .13 | 21 | 72170157 | Sealing Head Assembly |
| 9 | 5120092 | Backup Ring, 5.25×5.50× .13 | 22 | 72178493 | Flange Assembly |
| 10 | 72175997 | Hydraulic Cylinder Head | 23 | 20464590 | Flat Washer, 1.13 |
| 11 | 5097886 | Socket Head Screw, 3/4-16×2-1/4 | 24 | 20461761 | Hex Nut, 1-1/8-12 |
| 12 | 5144183 | Spacer Assembly, Proximity Switch | 25 | 20489339 | Adapter, JIC/Pipe, 50× .38 |
| 5144191 | O-Ring, .69× .88× .09 | 26 | 72176756 | O-Ring, 3.88×4.25× .19 | |
| 13 | 72141569 | Kit, Proximity Switch | 95119012 | Socket Head Screw, 1/4-20×1 | |
| 72134224 | Proximity Switch |
If you need 05144514 Hydraulic Cylinder 6000 bar For kmt waterjet machine kmt uhp 90k waterjet parts, get price here.
INQUIRY
Related PRODUCTS
-
Quick View
Waterjet intensifier pump spare parts 1029992 Waterjet Seal kit Resato
-
Quick View
106461 Coil Robotic Water jet Parts
-
Quick View
72168337 Repair Kit Piston Assembly For kmt waterjet machine kmt uhp waterjet parts
-
Quick View
05116561 Discharge Poppet 6000 bar For kmt waterjet machine kmt uhp 90k waterjet parts
-
Quick View
72166738 UHP Cylinder 6000 bar For kmt waterjet machine kmt uhp 90k waterjet parts
-
Quick View
10413 Coil Pipe aixs 3 Robotic Waterjet IRB2400
-
Quick View
10126969 Focusing Tube 0.03" Waterjet Nozzle for Waterjet Intensifier pump in Australia
-
Quick View

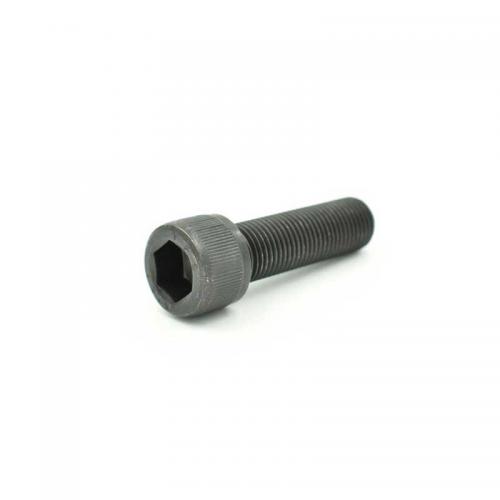

110-1-1240 Socket Head Cap Screw Waterjet for Waterjet Intensifier pump in Australia
-
Quick View
500-20-0040 Dialine Ruby Orifice 0.014" Waterjet for Waterjet Intensifier pump in Australia
-
Quick View

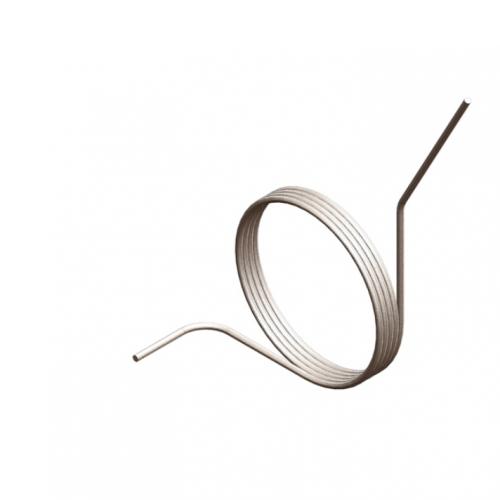

104259 Waterjet Coil pipe
