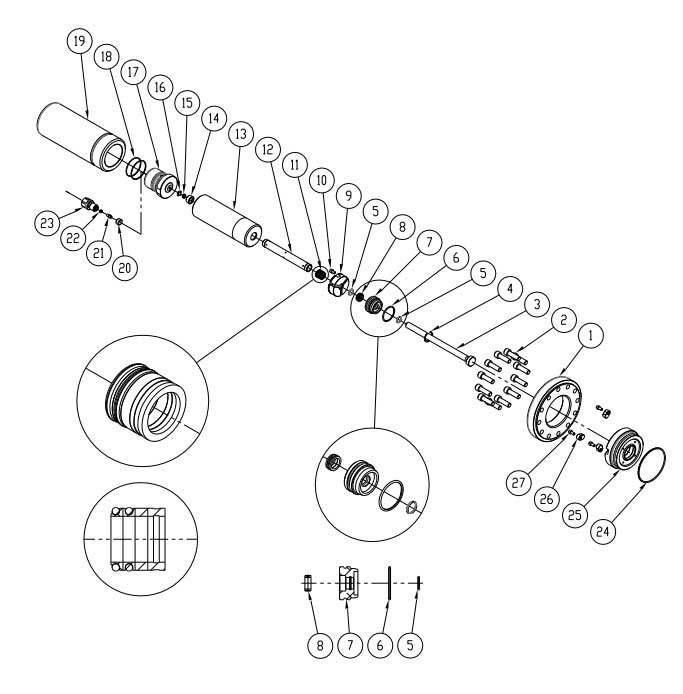

1

Clamp ring

SP4-50

1

2

M12x1.25x40 SHCS BLK

110-1-1240

12

3

Plunger

SP-46-3

1

4

Internal Circlip

501-1-0010

1

5

O-ring

500-5-0049

2

6

O-ring

500-5-0089

1

7

Seal Housing

SP4-45-175

1

8

Wiper Seal

SP1042

2

9

Guide Bush

SP4-46-175

1

10

M6 x 10 SHCS Black

108-1-0610

1

11

HP Seal Kit

SP1060

1

12

Cylinder Liner

SP4-69-175

1

13

Cylinder Body

SP-49-13

1

14

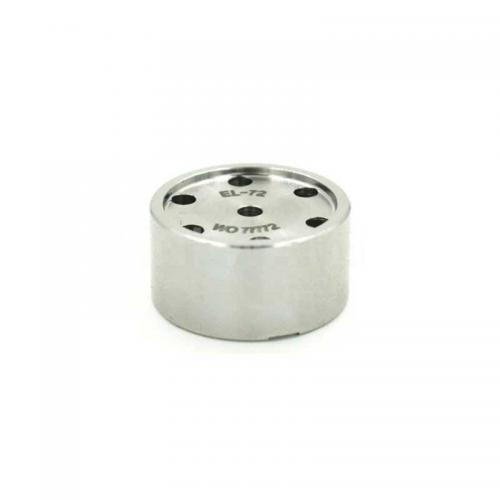

Check Valve Housing

SP-72-7

1

15

LP Check Valve Spring

500-12-0040

1

16

Check Valve Poppet

SP-73-2

1

17

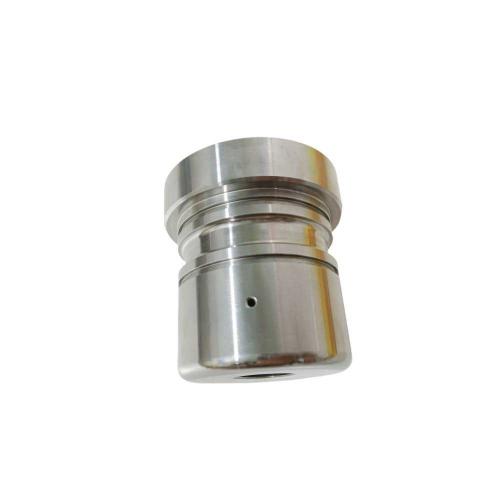

Sealing Head

SP-71-9

1

18

O-Ring- BS033

500-5-0042

2

19

Cylinder Retaining Sleeve

SP2-70-5

1

20

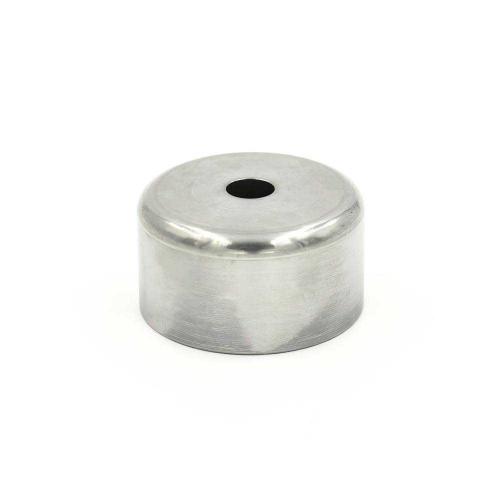

Valve Seat

500-20-0111

1

21

Outlet Poppet

500-20-0113

1

22

Spring

500-20-0112

1

23

Check valve outer body

500-20-0100

1

24

O-ring

500-5-0111

1

25

End Cap Insert

SP4-125

1

26

Clamp

SP4-126

3

27

M6 x 12 SHCS Black

108-1-0612

3

NA

Collar

10078715

1

NA

Gland nut 3/8"

10078129

1

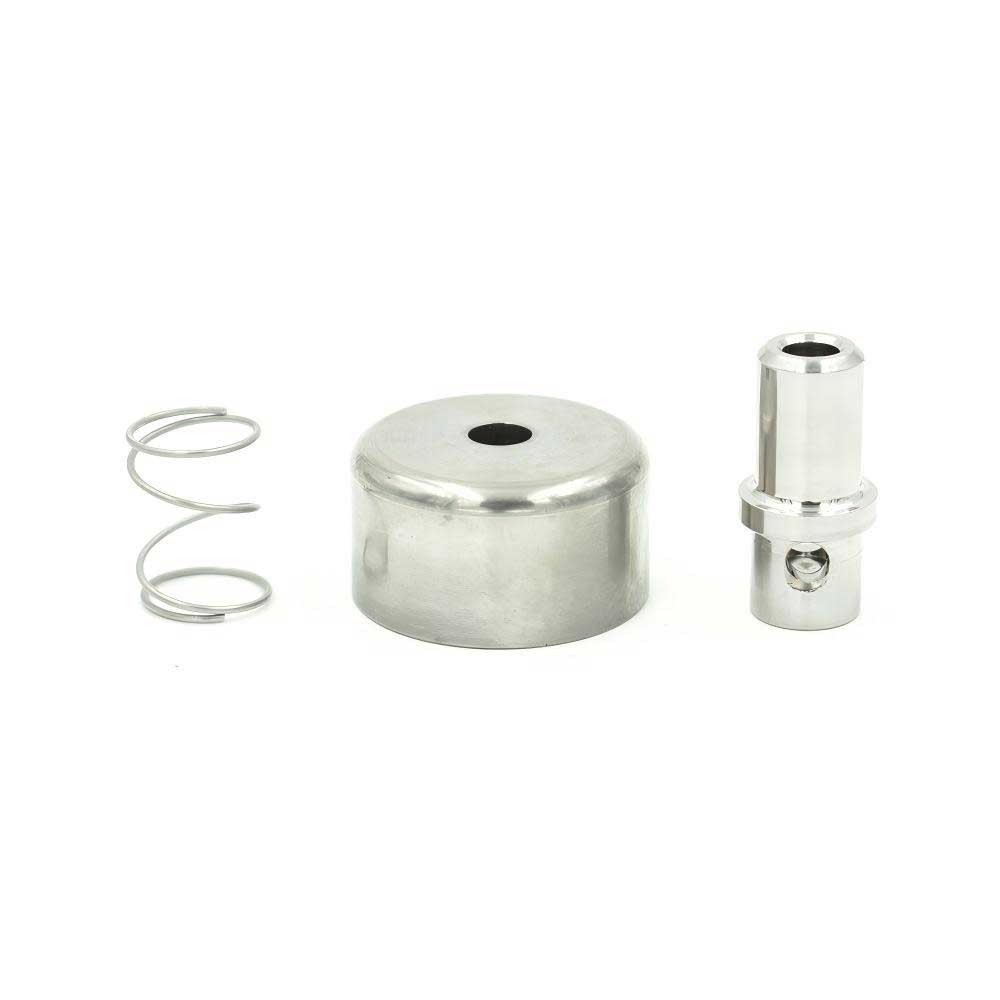

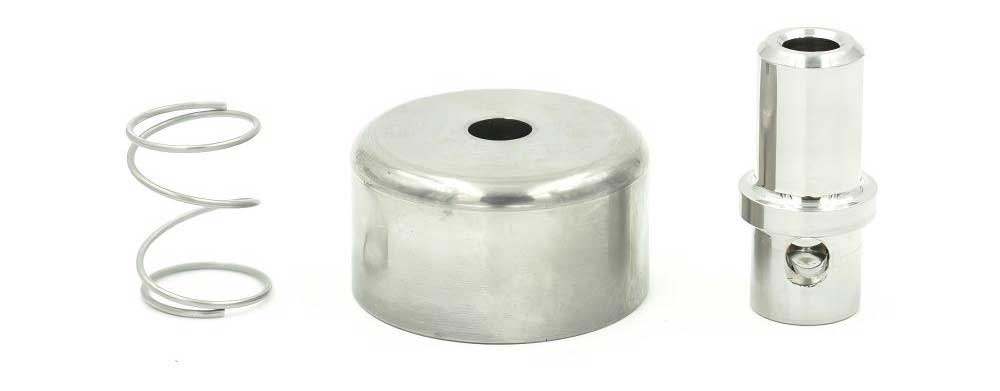

High Pressure Outlet Poppet Repair Kit

500-20-0110

20

Valve Seat

500-20-0111

1

21

Outlet poppet

500-20-0113

1

22

Spring

500-20-0112

1

Guide Bush Assembly Kit G4

SP1120

5

O-ring

500-5-0049

2

6

O-ring

500-5-0089

1

7

Seal Housing

SP4-45-175

1

8

Wiper Seal

SP1042

2

9

Guide Bush

SP4-46-175

1
