Seal kit 1004890

Waterjet Spare Parts Seal kit high-pressure 1004890 used for Resato Accumulator

Seal kit high-pressure
accumulator (één set nodig voor
elke kant)
1004890 Used for Resato Accumulator

INQUIRY Live chat

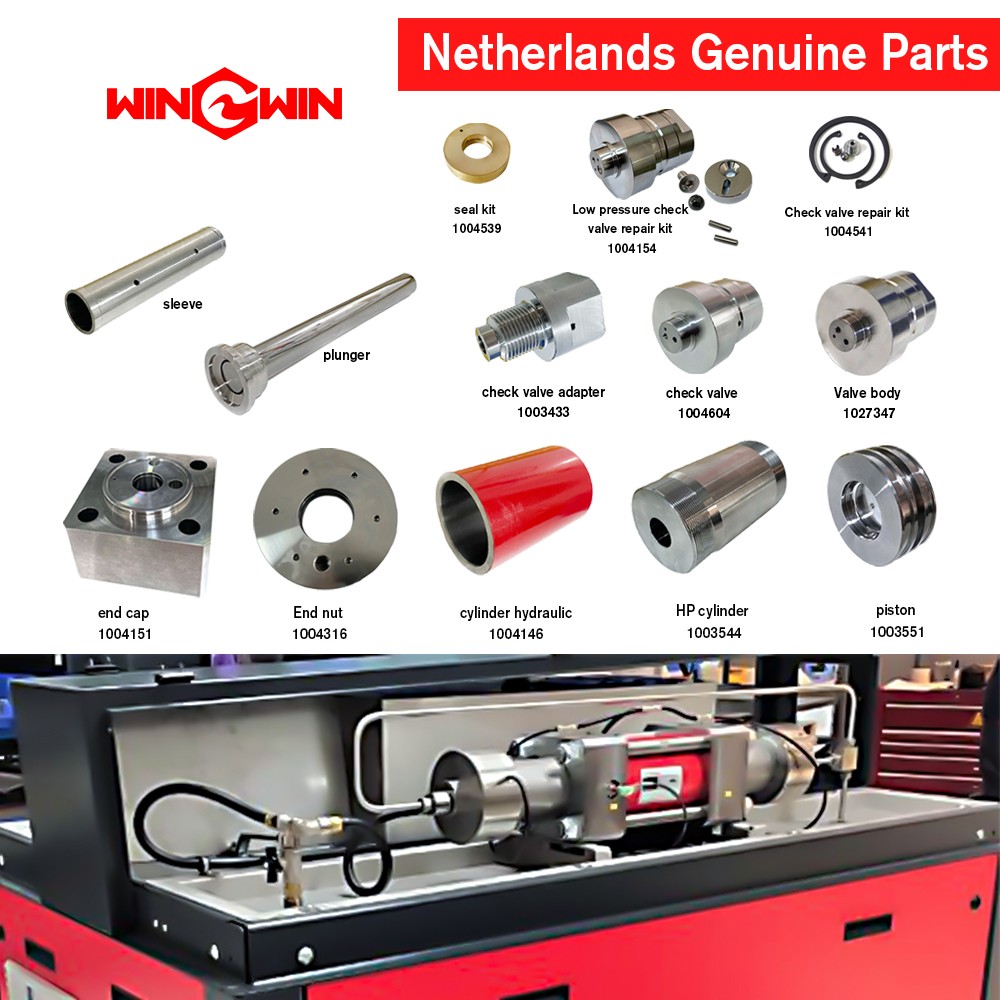

Resato Waterjet Spare Parts Seal kit 1004890

Interested in, contact us.

Seal kit 1004890.jpg

NO.	QTY	Product name	IOP115-20-2	A	B	C	D	E
1	2	Support ring	1003697	X
2	4	Hoop	1004319	X	X
3	4	High-pressure seal	1010531	X	X
4	4	O-ring	1010531	X	X
5	2	Bushing	1004326
6	2	High-pressure cylinder	1003544
7	2	Screw	1003435			X
8	2	Disk	1001824			X
9	4	Ider	1005501			X
10	2	Ball	1001753			X
11	2	Valve body	1004154			X
12	2	Seat	1003436				X	X
13	2	Ball	1003434				X	X
14	2	Guidance crown	1003437				X	X
15	2	Gland	1003433				X
16	2	Leakrate nipple HP flange	1005326
17	2	HP flange	1004316
18	2	Sealing ring	1015590
19	2	Screw	1001919
20	2	Connector	103370
21	4	O-ring	1000799			X

No.	Description		IOP115-20-2
A	Dynamic seal assembly		1004439
B	Static seal assembly		1004540
C	Inlet check valve assembly		1004604
D	Outlet check valve assembly		1003269
E	Outlet check valve repair kit		1004541
