O-ring 1003334

Waterjet Spare Parts O-ring 1003334 used for Resato

O-ring 1003334 Used for Resato

INQUIRY Live chat

Resato Waterjet Spare Parts O-ring 1003334

Interested in, contact us.

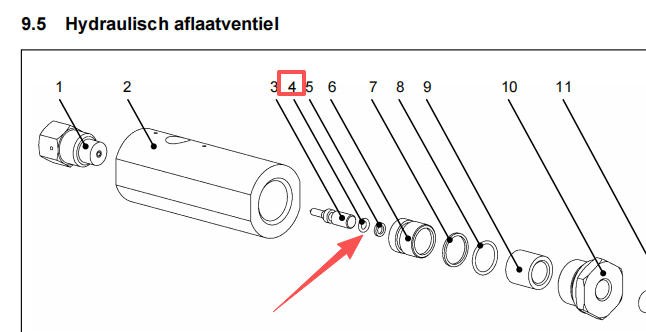

O-Ring 1003334.jpg

NO.	QTY	Product name	IOP115-20-2	A	B	C	D	E
1	2	Support ring	1003697	X
2	4	Hoop	1004319	X	X
3	4	High-pressure seal	1010531	X	X
4	4	O-ring	1010531	X	X
5	2	Bushing	1004326
6	2	High-pressure cylinder	1003544
7	2	Screw	1003435			X
8	2	Disk	1001824			X
9	4	Ider	1005501			X
10	2	Ball	1001753			X
11	2	Valve body	1004154			X
12	2	Seat	1003436				X	X
13	2	Ball	1003434				X	X
14	2	Guidance crown	1003437				X	X
15	2	Gland	1003433				X
16	2	Leakrate nipple HP flange	1005326
17	2	HP flange	1004316
18	2	Sealing ring	1015590
19	2	Screw	1001919
20	2	Connector	103370
21	4	O-ring	1000799			X

No.	Description		IOP115-20-2
A	Dynamic seal assembly		1004439
B	Static seal assembly		1004540
C	Inlet check valve assembly		1004604
D	Outlet check valve assembly		1003269
E	Outlet check valve repair kit		1004541
