Waterjet Parts for 3525 5-Axis Machine from WIN-WIN Waterjet
Recently, a batch of carefully matched waterjet parts has been successfully shipped to the customer's production base along with the core equipment. These parts are precisely compatible with the illustrated 3525 5-axis waterjet cutting machine, laying a solid core guarantee for the stable and efficient operation of the equipment. Though seemingly small, these parts are crucial to determining the cutting accuracy, efficiency, and service life of the waterjet system, directly affecting the processing quality and comprehensive costs in industrial production.

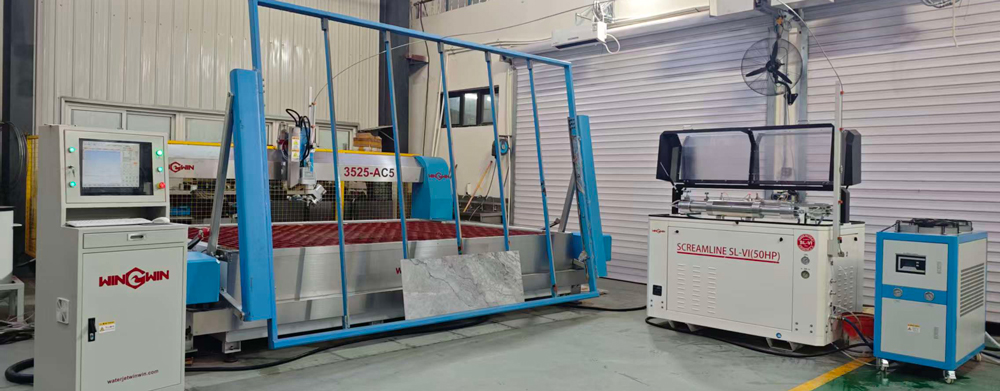

As shown in the figure, this 3525 5-axis cutting machine is widely used in high-end processing scenarios such as metal, stone, and composite materials due to its multi-dimensional flexible cutting capability. The simultaneously shipped Waterjet Parts are tailor-made "performance accelerators" for it. The supporting parts cover three core categories, each undergoing precision processing and strict testing to ensure perfect integration with the equipment.
Core Parts Empower Full-Working-Condition Capabilities

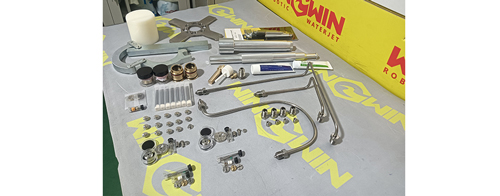

The Waterjet Parts shipped this time include ultra-high pressure sapphire nozzles, high-density tungsten carbide abrasive tubes, and high-pressure sealing components, all of which are "heart-level parts" of the waterjet cutting system. Among them, the sapphire nozzles are made of single-crystal sapphire with a Mohs hardness of 9, with an aperture tolerance strictly controlled within ±0.003mm. They can stably withstand ultra-high pressure impacts of 300-1000MPa, accelerating water flow to more than 3 times the speed of sound to form high-energy cutting jets. Their service life is more than 10 times that of ordinary stainless steel nozzles, effectively reducing downtime costs caused by frequent part replacements.
As the "ultimate mixer" of abrasive and high-pressure water, the high-density tungsten carbide abrasive tube has an inner hole precision that accurately matches the cutting needs of the 3525 5-axis equipment. It can realize uniform mixing of high-pressure water and garnet abrasive, avoid jet divergence, control the cutting seam width within 0.1mm, and significantly improve workpiece processing accuracy and material utilization. The matched high-pressure sealing components are made of high-pressure and corrosion-resistant materials, effectively preventing water leakage, ensuring pressure stability during long-term continuous operation of the equipment, and avoiding production interruptions and safety hazards caused by seal failure.
Part Quality Determines Processing Limits, Cost Reduction & Efficiency Improvement in Details
In the waterjet cutting field, it has become an industry consensus that "equipment performance depends on parts". Even minor wear of parts may trigger chain reactions: a 0.01mm wear of the nozzle aperture will increase the cutting bevel deviation, blockage of the abrasive tube will reduce efficiency by more than 30%, and inferior seals may cause high-pressure water leakage, leading to equipment failures and safety risks. The Waterjet Parts shipped with the 3525 5-axis machine comply with original factory adaptation standards and have passed multiple rounds of pressure tests and wear resistance experiments, ensuring continuous and stable output under harsh working conditions such as thick steel plate cutting and precision part processing.
Targeting the multi-dimensional cutting characteristics of the 3525 5-axis equipment, the supporting parts have also optimized the adaptive design: the nozzle can flexibly switch aperture specifications according to the cutting material, adapting to diverse needs from ultra-precise electronic components to thick metal plates; the length and interface thread of the abrasive tube are precisely matched to the equipment's tool head structure, avoiding installation deviations affecting cutting accuracy; the sealing components adopt a modular design, facilitating later maintenance and replacement, and further reducing equipment operation and maintenance costs.
Full-Chain Guarantee to Empower Customers' Efficient Production
The simultaneous shipment of these parts with the 3525 5-axis cutting machine not only achieves "ready-to-install and use" of equipment and parts but also reflects our in-depth consideration of customers' production needs. From part R&D, precision processing to adaptation testing, every link strictly controls quality to ensure that Waterjet Parts form the best synergy with the equipment, helping customers quickly start production and exert the maximum capacity of the equipment.
In the future, we will continue to provide technical support and after-sales service for parts, including value-added services such as part maintenance guidance and wear warning suggestions. We will help customers extend equipment service life, improve processing quality through high-quality Waterjet Parts, and consolidate production advantages in the fierce market competition.
